MFI Apple Find My Air Tag (Small Size )
Product Details
Product Parameters
| Slim Smart Card | Just 1.5-1.6mm thin, credit card size, perfectly attach with your wallet, ID card, luggage tag, passports, electronic devices and more in a convenient way. |

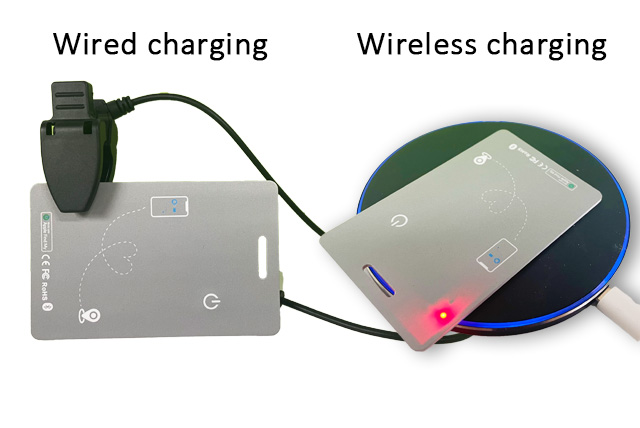

| Wireless/Wired Charging | Based on economical and easy chargeable way, a full charge lasts up to 4-5 months, with color LED indicator. |
| Find Nearby | Within a Bluetooth range up to 164 feet and compatible with Apple devices, it triggers the built-in buzzer to locate your belongings via your phone by using Find My network. ( Android devices are not supported.) |
| Left-Behind Remind | If smart track card is out of Bluetooth range, your iPhone will receive a notification reminder about your item last location before disconnection plus the most recent location on the Find My app without any subscription fees. |
| Lost Mode | Activate Lost Mode for your find my wallet tracker to locate your belongings with the help of Apple devices in the Find My network around the world. When it’s detected, a notification could be automatically received. |
| Share This Item | New function for iOS 17 by sharing items in Find My with up to 5 borrowers which allows them to see the item's location on a map. |
| Privacy Protection | Guaranteed Data Security based on Apple’s powerful service and encryption. |
| IP67 Waterproof & Dust Resistant | With IP67 Waterproof & Dust Resistant, it is perfect for outdoor activities and workshops. |
| Electrical Parameters | Battery nominal voltage | 3.7V |
| Nominal Capacity | 100mAH | |
| Average Working Current | 20uA | |
| Charging Time | 1.5~2 hours | |
| Charging Current | ≦ 100mA | |
| Service Life | 300 cycles | |
| Sleep Standby Time | >1 year | |
| Shutdown Voltage | 2.5V | |
| Size | 47.5*33.3*3.3mm 85.5*54*1.6mm |
|
| Protocol Specifications | Wireless Charging Protocol | WPC wireless charging latest Qi standard V1.2 |
| NFC Protocol | ISO/IEC-14443 (Optional) | |
| Bluetooth Protocol | Bluetooth V5.0 | |
| Working Frequency | RFID Frequency | 13.56 MHZ(Optional) |
| Bluetooth | 2.4GHZ | |
| Wireless Rechargeable | 127KHZ | |
| Bluetooth RF Parameters | Transmit Power: | -20 ~4dBm |
| Receiver Sensitivity | -96dBm |
| How to use compatible ble smart card with Apple’s Find My? |
| Binding Findeasy with your device ① Device power-on: Press and hold the card button for 5 seconds, it will ring and turn on. ② Bind the device: Open Apple's built-in "Find My" APP. ③ Hold the device near your iPhone, tap the Items tab, select “Add New Item”, and tap Other Supported Items. For devices showing: USC-FY10X, tap Connect. ④ Fill in "Custom name" to name your device and choose an emoji. ⑤ Agree to register the device to your Apple ID. Tap Done to bind successfully. |
| Enable "Lost Mode" |
| ① Open Apple's built-in Find My app, tap "Items" at the bottom, then choose the name of the item. ② Under "Lost Mode", click "Enable". ③ Follow the on-screen instructions and click "Continue" to enter your phone number or email address. ④ Click "Next" to check the information, and then click "Enable" again to complete the setup. |
| Delete the device |
| ① Open Apple's built-in Find My app, tap "Items" at the bottom of the screen, and choose the name of the item. ② Find “ Remove Item” at the bottom of the list, tap Remove to finish. Note: After deleting the device, the device will sound and the indicator will flash 6 times, and the device will not power off and be in pairing mode. ③ If there is no re-pairing within 10 minutes, the device will leave the pairing state, and cannot be paired with the app. ④ If you need to pair a device, you need to tap the card button once, the device will ring and flash the light once. The device enters the pairing state and can be re-paired with the app. |
| More applications | |
| Personnel Positioning | |
| Manufacturing | Trackers help to reduce the amount of time they spend searching for materials, tools, and equipment. |
| Hospitals or Medical Centers | Trackers help to locate medical equipment to divert the flow of people, reduce waiting times, and increase equipment utilization. |
| Logistics | Trackers help to grasp the location of goods, shorten delivery times, monitor the transportation process and understand the status of transportation. |
| Education | Trackers help to track school assets such as lab equipment, library books, laptops etc. |
| Farms | Trackers help to track and monitor livestock, track harvested crops and their location in various storage facilities, manage the location of agricultural machinery equipment. |
| Rental Companies | Trackers help to keep track of rental projects in and out of your jurisdiction. |
