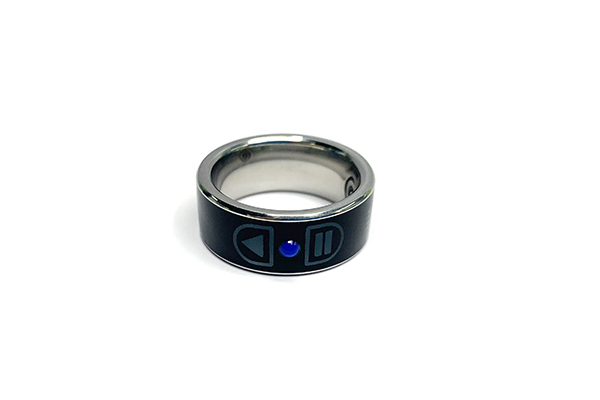

Bluetooth NFC Smart Ring





Bluetooth NFC Smart Ring

The wearable electronic ring is composed of a processor, a wireless transceiver, a power supply, and a microphone. A variety of tactile actuators and power sensors are installed inside.

Inquiry

Product Details

Product Parameters

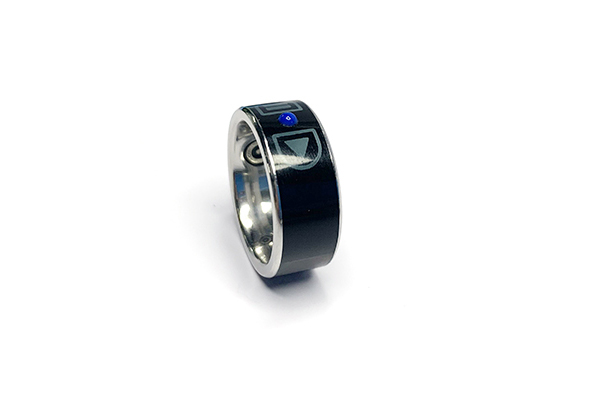

Bluetooth NFC Smart Ring

Product Name	Bluetooth NFC Smart Ring
Product model	SR-01
Product color	black
Bluetooth version	Ble 4.0
Bluetooth effective distance	2m
Battery type	Rechargeable lithium ion battery
Battery capacity	25mAh
Standby time	192h (one charge)

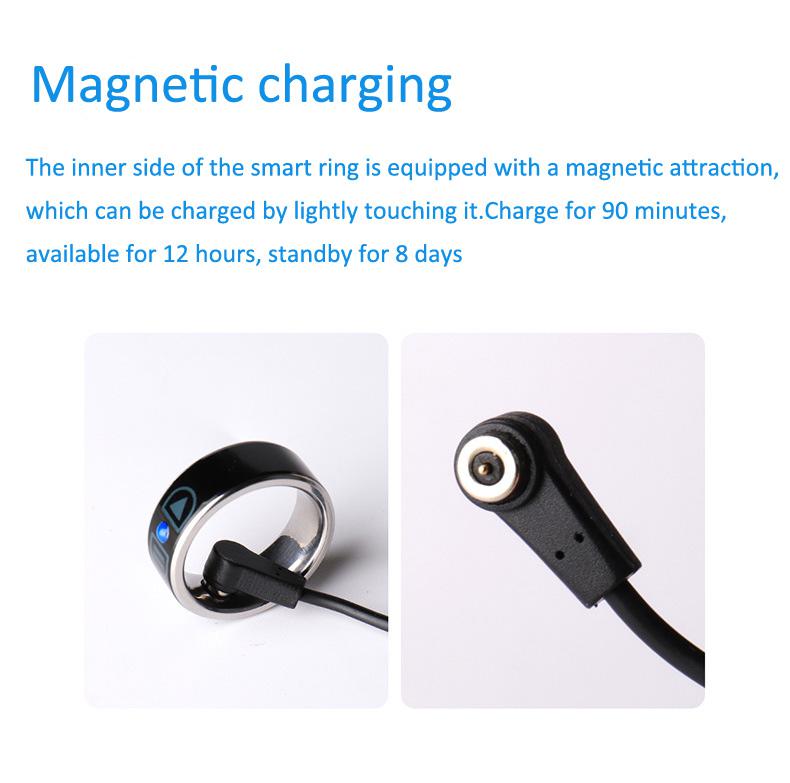

Charging time	1.5hr
Waterproof grade	IPX8
Net weight	5.9g

Indicator light description
Status indicator

Blue light flashes: waiting for bluetooth pairing status

Blue light keeps on for 3 seconds: bluetooth connect successfully

Battery indicator

Red light flashing: low battery, please charge the device

Steady green light: The device is fully charged

Instructions

Press the two virtual buttons at the same time for 6 seconds to power on the device,

the blue light flashes, waiting for bluetooth to connect;

Turn on phone settings, find the device "SO+" at the bluetooth list, and connect it；

NOTE: Apple phone needs to turn on the auxiliary touch function: settings-accessibility-touch-assistive touch-open

Mode switch

Long press the up button for six seconds,

the light flashes once means video mode,

twice means novel mode,

default mode is video mode;

Video mode

Click the down button: Video page down

Click the up button: Video page up

Press the down button for two seconds: take a photo

Double click the up button quickly: like video novel mode

Click the down button: novel page down

Click the up button: novel page up

Press the down button for two seconds: the song pause/play

Double click the up button quickly: switch to the next song

Power off

Long press the two buttons for 6 seconds to power off the device,the red light flashes once

Standby mode

If the device is idle for 20 minutes,it will automatically enter the standby mode.

To resume the device,the device then will automatically connect to the last paired mobile phone
