DA14585

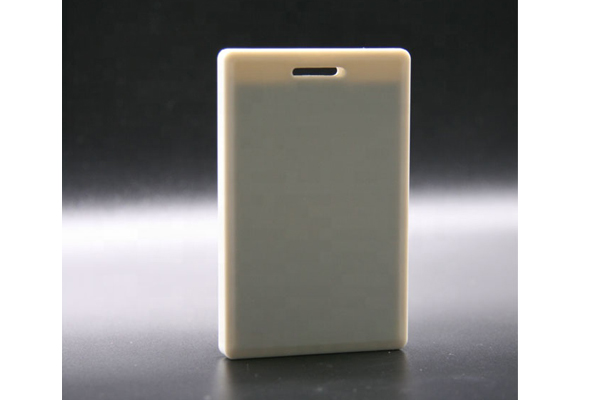

Ultrathin-Waterproof BLE iBeacon Card

The card beacon is using our patented cold lamination technology(patent No.201610 452484.2 to laminate theble module and PCBA and battery under the daily temperature, enjoying the lead in this industry to offer the thinnest card as thin as 1.7mm to be e

Product Details

Product Parameters

Ultrathin-Waterproof BLE iBeacon Card

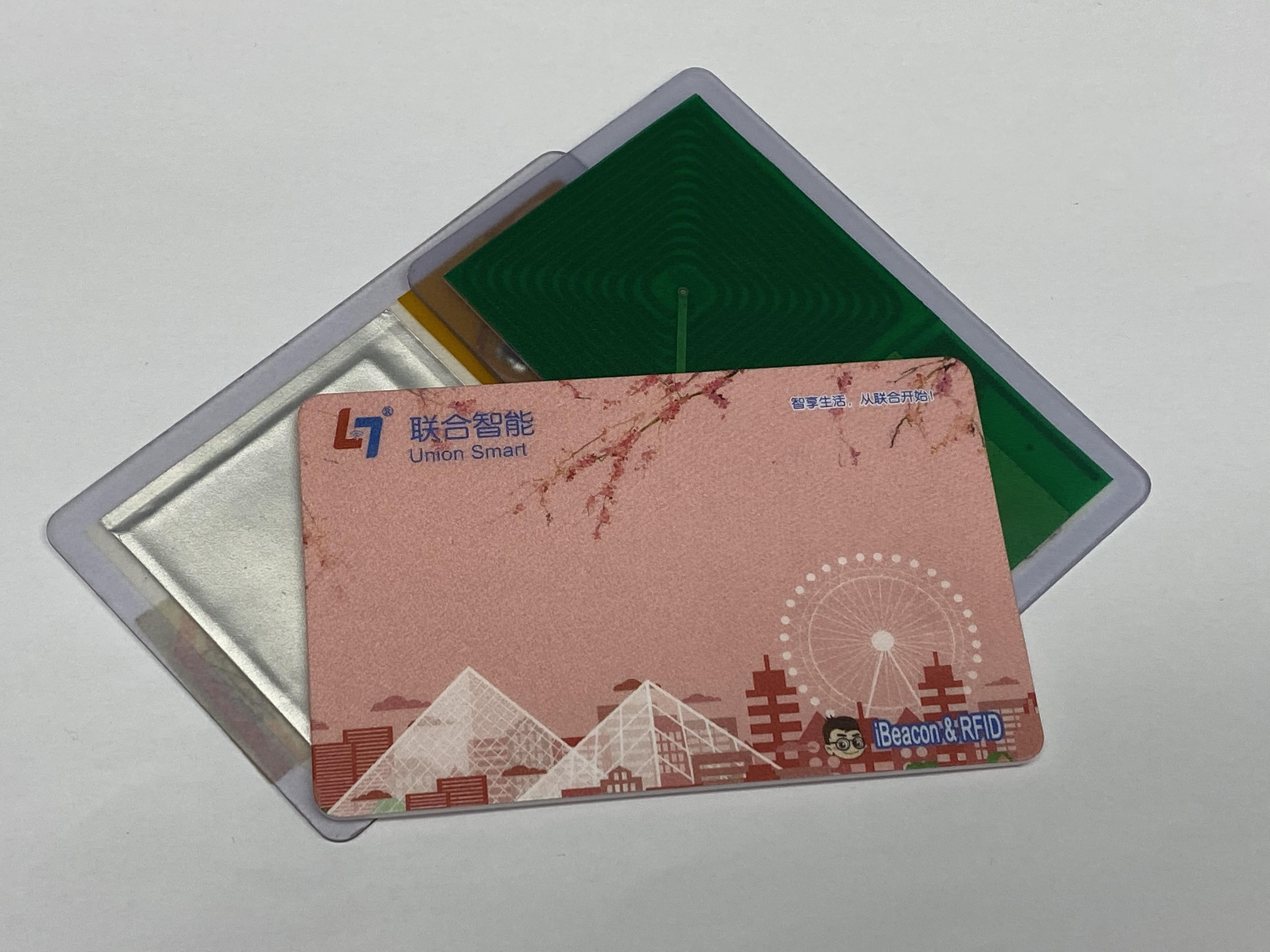

The card beacon is using our patented cold lamination technology(patent No.201610452484.2 to laminate theble module and PCBA  and battery under the daily temperature,
enjoying the lead in this industry to offer the thinnest card as thin as 1.7mm to be easily placed in the wallet, suitcase, handbag, passport and notebook etc..


Ultrathin-Waterproof BLE iBeacon Card
Product name Wired charge/Wireless recharge card iBeacon
Chip DA14585 & NRF52832
Bluetooth version  BLE5.0
Broadcast power 0dBm or -20dBm(Near Field Mode)
Broadcast frequency Default 500ms,100ms~10s adjustable
Transmission range More than 30 meters in the open area
Battery CP084646,Wireless recharge,85mAh
Quiescent current <=5uA
Size 85.5×54×1.7mm
Weight 10g
Service life 3-5 years
